Diagnostic Information

Diagnostic Information

If you have a problem with a particular deployment, and need some help, there are a few bits of information you can provide that will help us help you. Below you will find information on how to retrieve the information we may ask you for.

Deployment JSON and Logs

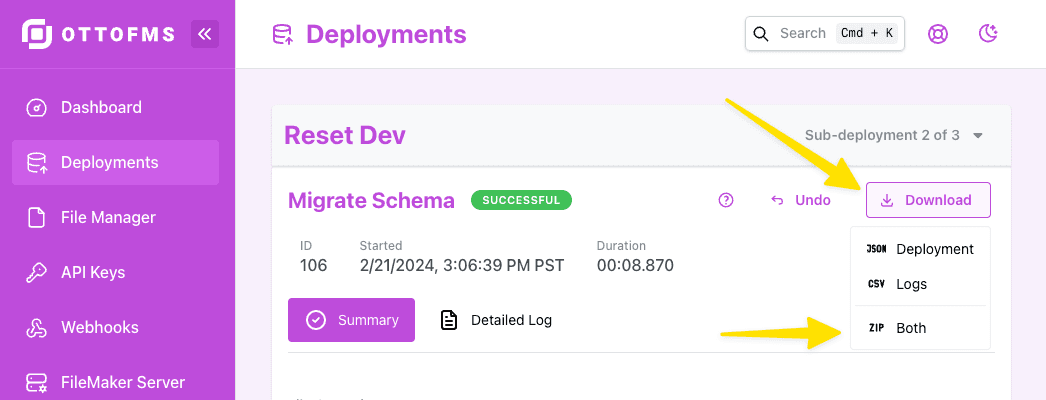

You can get the deployment JSON and the deployment Logs for any given sub deployment from the deployment details screen in OttoFMS. Hover over the Downloads button and select the appropriate option.

Download Deployment Info

Full deployment JSON

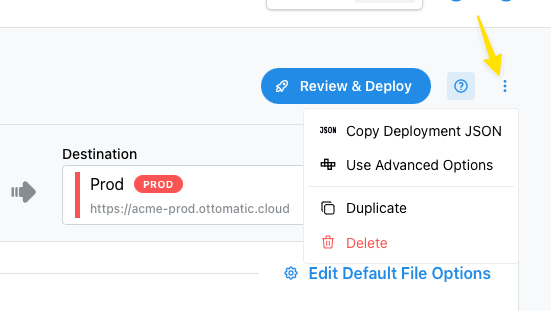

You can copy the full Deployment JSON from the deployment details screen. Click the three dots in the top right of the deployment details screen and select "Copy Deployment JSON". Choose hide secrets to mask any sensitive information.

Copy Deployment JSON

OttoFMS Logs

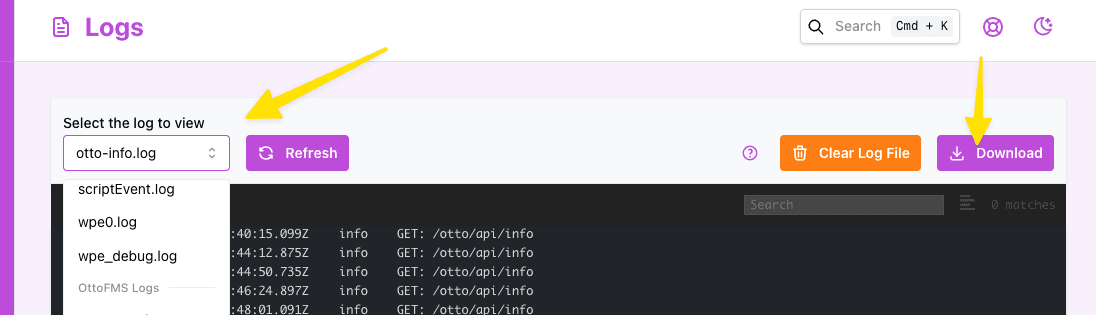

The OttoFMS logs are available from the "Logs" tab in the OttoFMS web console. Choose the logs you want in the drop download menu on the left, then you can download the logs by clicking the "Download" button.

The otto-info.log incudes errors as well as other information so it is generally the most useful.

If you are having trouble with webhook receiving then otto-receiver.log is the most useful.

Download OttoFMS Logs

Multiple Servers

Don't forget that is you have multiple servers, involved in the deployment, it would be helpful to have the logs from all of them.

Sending sensitive information

We don't recommend that you post all of this information in a public post on the community forum (opens in a new tab). Please direct message one of the Proof+Geist team members with the information. You can also email the information to support@proofgeist.com and reference your public post.

Usually whoever is helping you will ask for the information they need be sent to them via Direct Message.
